Original Article

Morphometric Assessment of Occipital Condyle in Gender & Age Determination: A Cross Sectional Forensic CBCT Study

N Alice Josephine Rani, Post Graduate student, Department of Oral Medicine and Radiology, Meenakshi Ammal Dental College and Hospital, Meenakshi Academy of Higher Education and Research Institute, Chennai 600095, Tamil Nadu, India.alice.nevis@yahoo.com null, Saraswathi K Gopal1 null, Poongodi V 2 null, N Alice Josephine Rani3 null

Author Information

Licence:

Attribution-Non-commercial 4.0 International (CC BY-NC 4.0)

This license enables reusers to distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, and only so long as attribution is given to the creator.

Indian Journal of Forensic Odontology 15(2):p 63-70, july-december 2022. | DOI: https://doi.org/10.21088/ijfo.0974.505X.15222.2

How Cite This Article:

Saraswathi K Gopal, Poongodi V, N Alice Josephine Rani/Morphometric Assessment of Occipital Condyle in Gender & Age Determination: A Cross Sectional Forensic CBCT Study/Indian Journal of Forensic Odontology. 2022;15(2):63–70.

Timeline

Received : October 10, 2022         Accepted : November 03, 2022          Published : December 20, 2022

Abstract

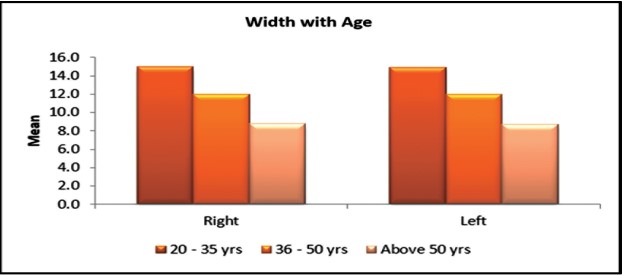

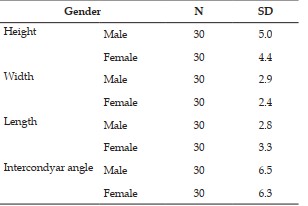

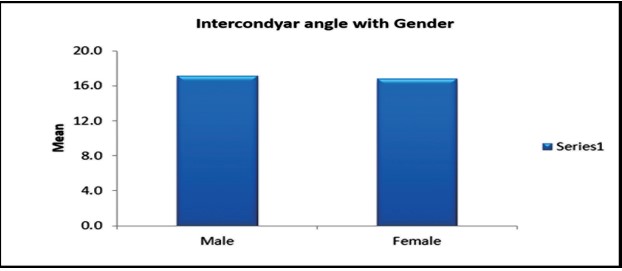

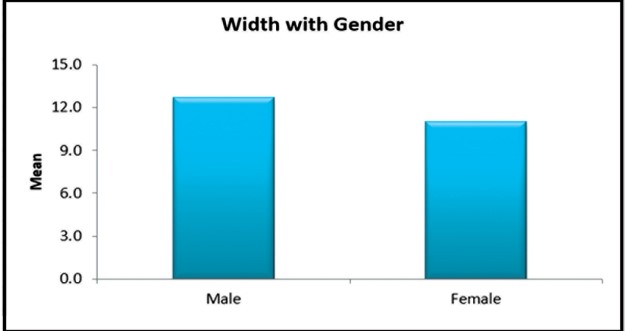

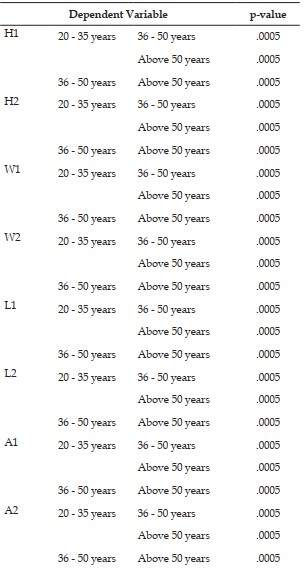

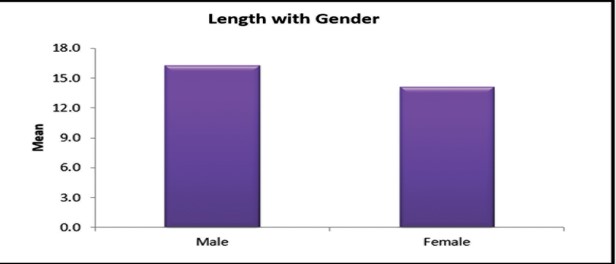

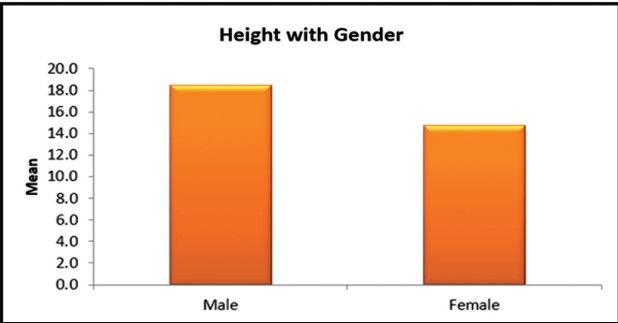

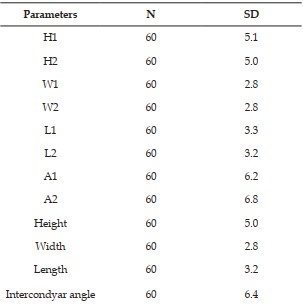

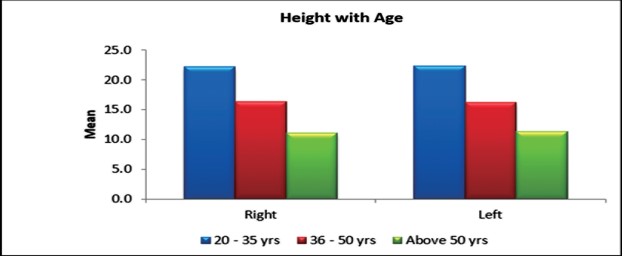

Aim & Objectives: To assess the dimensions of Occipital Condyle (OC) in three different age groups and to gender. Materials and Method: 60 CBCT volumes acquired from the dental archives were used. Using Planmeca Romexis software, Height of OC: Longest line drawn ascending from Condylar cartilage to the hypoglossal canal on the coronal section. Condylar Sagittal angle: long axis of the Condyle & the sagittal midline on the coronal section. Width of OC: Widest line drawn to the mid-point of the long axis of the OC on the axial section. Length of OC: Longest axis of the OC on the sagittal section. Results: The collected data were analysed with IBM SPSS Statistics for Windows, Version 23.0. (Armonk, NY: IBM Corp). The parameters of height, width, length of OC and Condylar sagittal angle had a statistically significant ‘p’ value which was a boon to the present study. Conclusion: The morphometric variables such as height, width, length of OC & Condylar-Sagittal angle could serve as reliable tool in gender and age determination in Forensics.

References

  • 1.   Morphometric analysis of occipital condyles using alternative imaging technique Ismail Gumussoy1 Suayip B. Duman Surgical and Radiologic Anatomy https://doi.org/10.1007/s00276-019-02344-2.
  • 2.   Anatomic study of the occipital condyle and its surgical implications in transcondylar approach SnehaGuruprasadKalthur, SupriyaPadmashali, Chandni Gupta, Antony S. Dsouza Journal of Craniovertebral Junction and Spine 2014, 5:15.
  • 3.   Human Adult Occipital Condyles: A Morphometric Analysis. Anil Kumar1*, and Mahindra Nagar2 Research And Reviews: Journal Of Medical And Health Sciences | Volume 3 | Issue 4 October – December, 2014.
  • 4.   Morphometric Analysis of the Occipital Condyle and Its Surgical Importance Journal of Clinical and Diagnostic Research. 2016 Nov, Vol-10(11): AC01- AC04.
  • 5.   Morphometry of occipital condyles: implications for transcondylar approach to craniovertebral junction lesions; Isaac Cheruiyot, Phillip Mwachaka, Hassan Saidi Anatomy Journal of Africa. 2018. Vol 7 (2): 1224 – 1231.
  • 6.   Morphometric investigation of occipital condyles and its relevance in transcondylar approach: An observational study in western Uttar Pradesh region Rakesh Kumar Agarwal1, Anuj Ram Sharma2*, Vishnu Gupta3 MedPulse – International Journal of Anatomy, PISSN: 2550-7621, EISSN: 2636-4557 Volume 11, Issue 2, August 2019 pp 39-43.
  • 7.   Foramen magnum, occipital condyles and hypoglossal canals morphometry: anatomical study with clinical implications Ch. Lyrtzis1, M. Piagkou2, A. Gkioka2, N. Anastasopoulos1, S. Apostolidis1, K. Natsis1 Folia Morphol. Vol. 76, No. 3, pp. 446–457 DOI:10.5603/FM.a2017.0002.
  • 8.   Gopal SK. Role of 3 D Cone Beam Computed Tomography Imaging in Forensic Dentistry: A Review of Literature. Ind J For Dent. 2018; 11(2):75- 82.
  • 9.   Venkatesh E, Elluru SV. Cone beam computed tomography: basics and applications in dentistry. J IstanbUnivFac Dent. 2017;51(3 Suppl 1):S102-S121.
  • 10.   Osteogenesis & Bone Regeneration - Bone Development & growth – Rosy Setiawati& Paulus Raha – Haisheng yang.
  • 11.   Foramen magnum, occipital condyles andhypoglossal canals morphometry: anatomicalstudy with clinical implications Ch. Lyrtzis1, M. Piagkou2, A. Gkioka2, N. Anastasopoulos1, S. Apostolidis1, K. Natsis1 Folia Morphol., 2017, Vol. w76, No. 3

Data Sharing Statement

There are no additional data available. All raw data and code are available upon request.

Funding

This research received no funding.

Author Contributions

All authors contributed significantly to the work and approve its publication.

Ethics Declaration

This article does not involve any human or animal subjects, and therefore does not require ethics approval.

Acknowledgements

We would like to express our gratitude to the patients, their families, and all those who have contributed to this study.

Conflicts of Interest

No conflicts of interest in this work.

About this article

Cite this article

Saraswathi K Gopal, Poongodi V, N Alice Josephine Rani/Morphometric Assessment of Occipital Condyle in Gender & Age Determination: A Cross Sectional Forensic CBCT Study/Indian Journal of Forensic Odontology. 2022;15(2):63–70.

Licence:

Attribution-Non-commercial 4.0 International (CC BY-NC 4.0)

This license enables reusers to distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, and only so long as attribution is given to the creator.

Received Accepted Published
October 10, 2022 November 03, 2022 December 20, 2022
DOI: https://doi.org/10.21088/ijfo.0974.505X.15222.2

Keywords

CBCT; Occipital Condyles; Condyle; Occipital bone; Forensics.
