Abstract

Aim: To identify the most reproducible technique of patient positioning and immobilization in patients with carcinoma cervix.

Background: Radiotherapy aims at controlled killing of tumors cells without harming the normal tissue surrounding the disease. The basic aim of radiotherapy planning is to ensure adequate coverage of target with the planned dose and to save the normal tissue. Adequate margins for setup errors are necessary, the margins applied must not be huge as that would adversely affect normal tissue. This study compares the knee rest with thermoplastic pelvic cast in patients with carcinoma cervix with an aim of identifying the most reproducible method.

Material and methods: Cross-sectional study was done in patients of carcinoma cervix undergoing radiotherapy from April 2021 to June 2022 at our institution. Immobilization was performed on 20 patients (Thermoplastic pelvic cast i.e., Pelvic cast pelvic masks=10, Kneerest=10). The systemic error, random error and planning target volume (PTV) margins were calculated for both the techniques and statistically analysed.

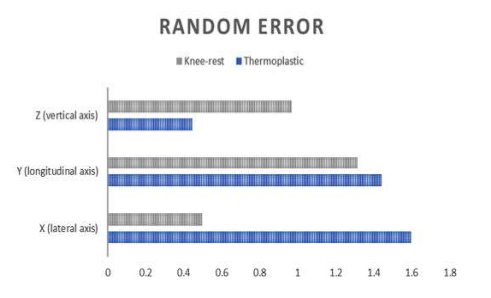

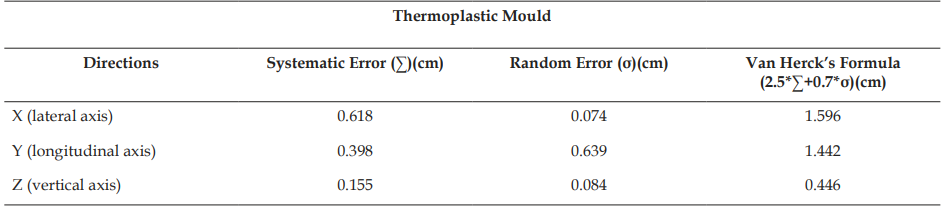

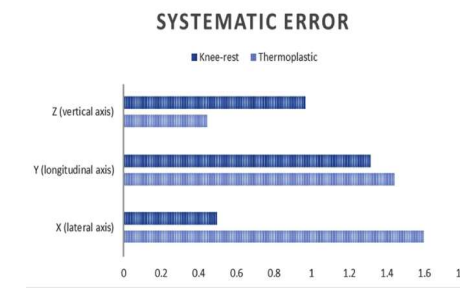

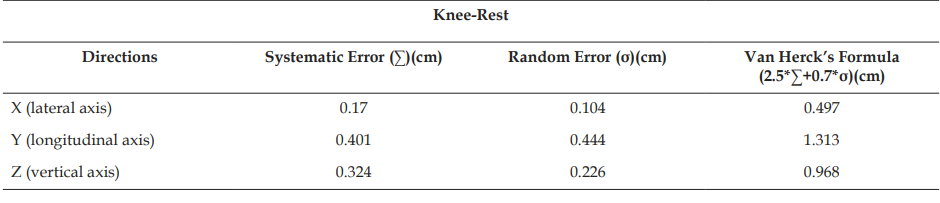

Result: The systemic error in lateral (x-axis), longitudinal (y-axis) and vertical (z-axis) in thermoplastic pelvic cast and knee rest are 0.61cm, 0.39cm, 0.15cm and 0.17cm, 0.4cm, 0.32cm respectively. Random error are lateral (x-axis), longitudinal (y-axis), and vertical (z-axis) are 0.07cm, 0.63cm, 0.08cm and 0.10cm, 0.44cm, 0.22cm. CTV-PTV margin using van herk’s formula in lateral (x-axis), longitudinal (y-axis) and vertical axis (z-axis) using thermoplastic pelvic cast and knee rest are 1.59cm, 1.44cm, 0.44cm and 0.49cm, 1.31cm, 0.96cm respectively. CTV-PTV margin using Stroom’s formula in lateral (x-axis), longitudinal (y-axis) and vertical axis (z-axis) using thermoplastic pelvic cast and knee rest are 1.28cm, 1.24cm, 0.36cm and 0.41cm, 1.11cm, 0.80cm respectively.

Conclusion: Among the two techniques, knee rest technique is least time consuming and most economically viable in developing countries.

• 1.   Patni N, Burela N, Pasricha R, Goyal J, Soni TP, Kumar TS, et al. Assessment of three-dimensional setup errors in image-guided pelvic radiotherapy for uterine and cervical cancer using kilovoltage cone-beam computed tomography and its effect on planning target volume margins. J Cancer Res Ther. 2017;13(1):131-136.
• 2.   Thondykandy BA, Swamidas JV, Agarwal J, Gupta T, Laskar SG, Mahantshetty U, et al. Setup error analysis in helical tomotherapy based image-guided radiation therapy treatments. J Med Phys. 2015;40(4):233-239.
• 3.   Santanam L, Esthappan J, Mutic S, Klein EE, Goddu SM, Chaudhari S, et al. Estimation of setup uncertainty using planar and MVCT imaging for gynecologic malignancies. Int J Radiat Oncol Biol Phys. 2008;71(5):1511-1517.
• 4.   Stroom JC, Olofsen-van Acht MJ, Quint S, Seven M, de Hoog M, Creutzberg CL, et al. On-line set-up corrections during radiotherapy of patients with gynecologic tumors. Int J Radiat Oncol Biol Phys. 2000;46(2):499-506.
• 5.   Kalita AK, Bora G, Bhattacharyya M, Singh MN, Medhi PP, Bansal S. Assessment of set up errors and determination of planning target volume margins in image guided radiotherapy for cervical cancer patients treated in supine position. [Journal Unknown]. [Year];[Vol]:[Pages].
• 6.   Rash D, Hagar Y, Cui J, Hunt JP, Valicenti R, Mayadev J. Interfraction motion of the vaginal apex during postoperative intensity modulated radiation therapy: are we missing the target? Int J Gynecol Cancer. 2013;23(2):385-392.
• 7.   Yao L, Zhu L, Wang J, Liu L, Zhou S, Jiang S, et al. Positioning accuracy during VMAT of gynecologic malignancies and the resulting dosimetric impact by a 6-degree-of-freedom couch in combination with daily kilovoltage cone beam computed tomography. Radiat Oncol. 2015;10:162.
• 8.   Laursen LV, Elstrøm UV, Vestergaard A, Muren LP, Petersen JB, Lindegaard JC, et al. Residual rotational set-up errors after daily cone-beam CT image guided radiotherapy of locally advanced cervical cancer. Radiother Oncol. 2012;105(2):220-225.
