Abstract

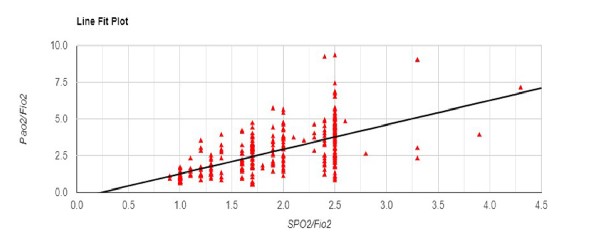

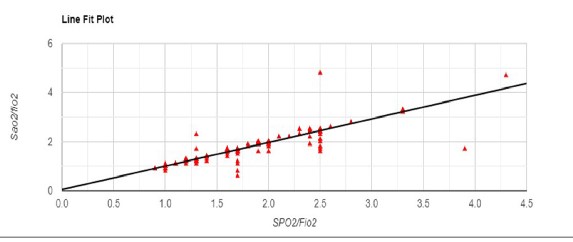

Various invasive and non-invasive techniques are used to understand the oxygenation. This study aimed to assess the correlation between Spo2/Fio2ratio to Pao2/Fio2and Sao2/ Fio2 in different invasive modes of oxygen supplementation. We hypothesized that the non-invasive index SpO2/FiO2 (SF) ratio can be used as a surrogate for to invasive index PaO2/FiO2 (PF) ratio and SaO2/FiO2 ratio in all invasive modes of ventilation. Methods and methodology: A total of 313 patients admitted to the surgical and medical intensive care unit were enrolled in this retrospective cross-sectional study. Fraction of inspired oxygen (FiO2) from the monitor, while ABG sampling, Partial pressure of oxygen (PaO2) and Arterial oxygen saturation (SaO2) were noted from the ABG, reports in the medical records. The corresponding saturation of peripheral oxygen (SpO2) was noted from the monitor while ABG sampling. Calculated SF, PF and SaO2/FiO2 ratios were recorded and correlation between the same was noted in different invasive modes of ventilation. Results: Pearson’s correlation was used to quantify the relationship between the variables. The study showed a positive correlation, r=0.6003 (P< 0.001), between SF and PF ratio and also a positive correlation, r=0.9137 (P<0.001), between SF and SaO2/ FiO2 ratio. In addition, the median values of SF ratio (P-value=0) and SaO2/FiO2 ratio (P-value=0) indicated the observed difference is unlikely to be due to chance. Conclusion: In patients who are on an invasive mode of ventilation, the non-invasive SF can be used as a surrogate for invasive PF and SaO2/FiO2 ratio.

• 1.   Sirohiya P, Vig S, Pandey K, Meena JK, Singh R, Ratre BK, Kumar B, Pandit A, Bhatnagar S. A Correlation Analysis of Peripheral Oxygen Saturation and Arterial Oxygen Saturation Among COVID-19 Patients. Cureus. 2022 Apr 10;14(4):e24005.
• 2.   Wilson-Baig N, McDonnell T, Bentley A. Discrepancy between Sp O2 and Sa O2 in patients with Covid-19 Anesthesia. 2021 Mar;76 Suppl 3(Suppl 3):6-7.
• 3.   Perez-Padilla JR. La altitudmodifica la relacion entre la PaO2/FiO2 y elcortocircuito: impactoen la valoracion de la lesionpulmonaraguda [Altitude, the ratio of PaO2 to fraction of inspired oxygen and shunt: impact on the assessment of acute lung injury]. Arch Bronconeumol. 2004 Oct;40(10):459-62. Spanish.
• 4.   Kwack WG. Evaluation of the Daily Change in PaO 2 /FiO2 Ratio as a Predictor of Abnormal Chest X-rays in Intensive Care Unit Patients Post Mechanical Ventilation Weaning: A Retrospective Cohort Study. Medicina (Kaunas). 2022 Feb 17;58(2):303.
• 5.   Walter JM, Corbridge TC, Singer BD. Invasive Mechanical Ventilation. South Med J. 2018 Dec;111(12):746-753.
• 6.   Singer BD, Corbridge TC. Basic invasive mechanical ventilation. South Med J. 2009 Dec;102(12):1238-45.
• 7.   Catoire P, Tellier E, de la Rivière C, Beauvieux MC, Valdenaire G, Galinski M, Revel P,Combes X, Gil-Jardiné C. Assessment of the SpO 2 / FiO2 ratio as a tool for hypoxemia screening in the emergency department. Am J Emerg Med. 2021 Jun;44:116-120. doi:10.1016/j. ajem.2021.01.092. Epub 2021 Feb 6.
• 8.   Bilan N, Dastranji A, Ghalehgolab Behbahani A. Comparison of the spo2/fio2 ratio and the pao2/fio2 ratio in patients with acute lung injury or acute respiratory distress syndrome. J Cardiovasc Thorac Res. 2015;7(1):28-31.
• 9.   Bass CM, Sajed DR, Adedipe AA, West TE. Pulmonary ultrasound and pulse oximetry versus chest radiography and arterial blood gas analysis for the diagnosis of acute respiratory distress syndrome: a pilot study. Crit Care. 2015 Jul 21;19(1):282.
• 10.   Wick KD, Matthay MA, Ware LB. Pulse oximetry for the diagnosis and management of acute respiratory distress syndrome. Lancet Respir Med. 2022 Nov;10(11):1086-1098.
• 11.   Singh G, Gladdy G, Chandy TT, Sen N. Incidence and outcome of acute lung injury and acute respiratory distress syndrome in the surgical intensive care unit. Indian J Crit Care Med. 2014Oct;18(10):659-65.
• 12.   Kangelaris KN, Calfee CS, May AK, Zhuo H, Matthay MA, Ware LB. Is there still a role for the lung injury score in the era of the Berlin definition of ARDS? Ann Intensive Care. 2014 Feb 18;4(1):4.
• 13.   Babu S, Abhilash KP, Kandasamy S, Gowri M. Association between SpO2/FiO2 Ratio and PaO2/FiO2 Ratio in Different Modes of Oxygen Supplementation. Indian J Crit Care Med. 2021 Sep;1005-1001:(9)25.
• 14.   Rice TW, Wheeler AP, Bernard GR, Hayden DL, Schoenfeld DA, Ware LB; National Institutes of Health, National Heart, Lung and Blood Institute ARDS Network. Comparison of the SpO2/FIO2 ratio and the PaO2/FIO2 ratio in patients with acute lung injury or ARDS. Chest. 2007 Aug;132(2):410-7.
• 15.   Carvalho EB, Leite TRS, Sacramento RFM, Nascimento PRLD, Samary CDS, Rocco PRM, Silva PL. Rationale and limitations of the SpO2 /FiO2 as a possible substitute for PaO2/FiO2 in different preclinical and clinical scenarios. Rev Bras Ter Intensiva. 2022 Jan-Mar;34(1):185-196.
• 16.   Kumar A, Aggarwal R, Khanna P, Kumar R, Singh AK, Soni KD, Trikha A. Correlation of the SpO2/FiO2 (S/F) ratio and the PaO2/FiO2 (P/F) ratio in patients with COVID19- pneumonia. Med Intensiva. 2022 Jul;410-408:(7)46.
• 17.   Fleiss N, Polin RA. Sequential organ failure assessment scores to predict outcomes: from adults to neonates. Curr OpinPediatr. 2023 Apr 1;35(2):218-222.
• 18.   Manthous CA. A practical approach to adult acute respiratory distress syndrome. Indian J Crit Care Med. 2010 Oct;14(4):196-201.
• 19.   Adams JY, Rogers AJ, Schuler A, Marelich GP, Fresco JM, Taylor SL, Riedl AW, Baker JM, Escobar GJ, Liu VX. Association Between Peripheral Blood Oxygen Saturation (SpO2)/ Fraction of Inspired Oxygen (FiO2) Ratio Time at Risk and Hospital Mortality in Mechanically Ventilated Patients. Perm J. 2020;24:19.113.
• 20.   Matthay MA, Arabi Y, Arroliga AC, Bernard G, Bersten AD, Brochard LJ, Calfee CS, Combes A, Daniel BM, Ferguson ND, Gong MN, Gotts JE, Herridge MS, Laffey JG, Liu KD, Machado FR, Martin TR, McAuley DF, Mercat A, Moss M, Mularski RA, Pesenti A, Qiu H, Ramakrishnan N, Ranieri VM, Riviello ED, Rubin E, Slutsky AS, Thompson BT, Twagirumugabe T, Ware LB, Wick KD. A New Global Definition of Acute Respiratory Distress Syndrome. Am J Respir Crit Care Med. 2024 Jan 1;209(1):37-47.
